GIR TIP/GCA terminal

  • Cloud-native device, also on-premises software capable.

  • Real-time communication between terminals and software.

  • Modular design assuring excellent maintenance flexibility and upgrades.

  • Compatible with both W150 and W250 softwares.

PDF brochure

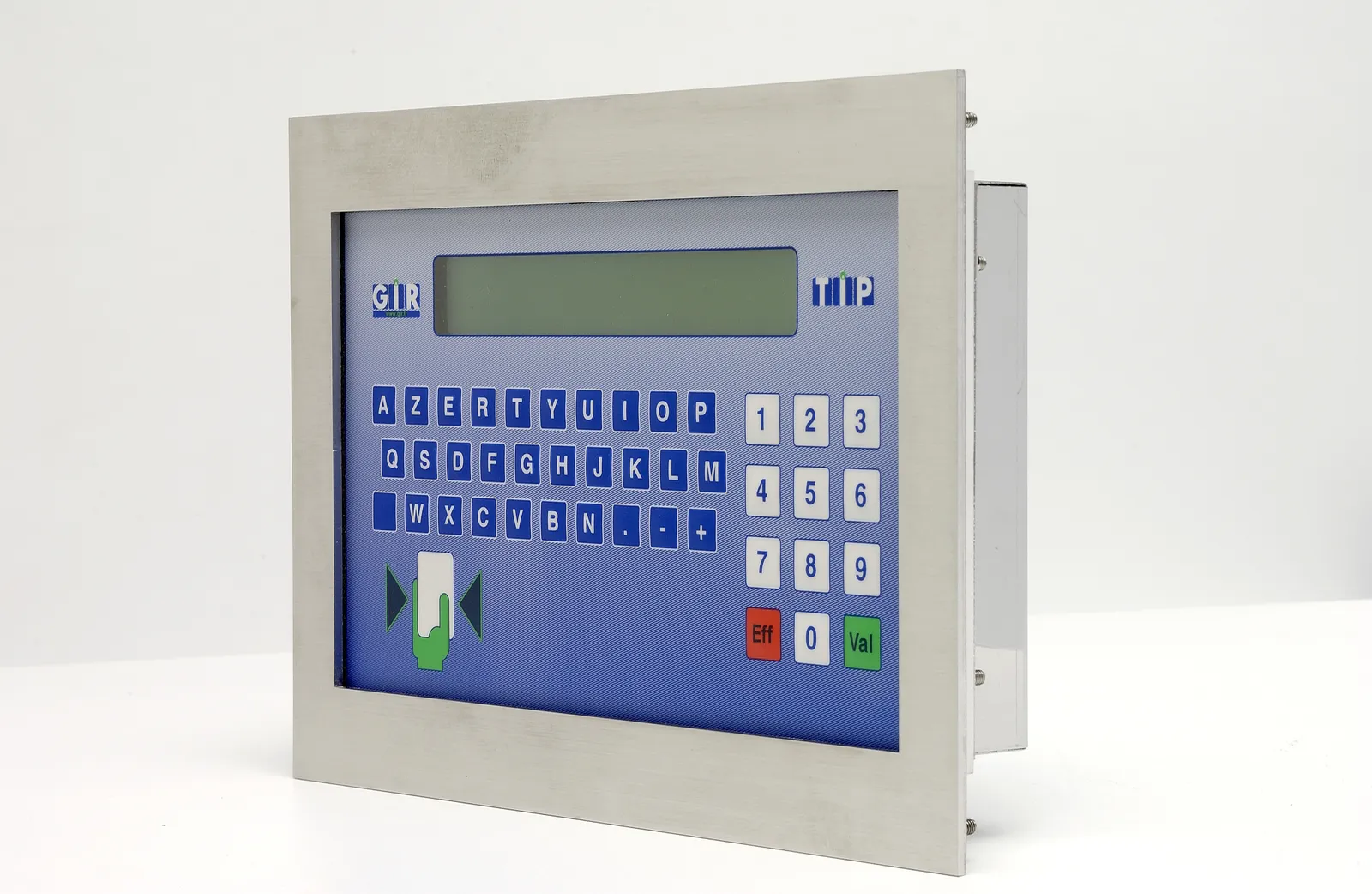

gir-gca-tip-terminal
gir-gca-tip-born01-resized
gir-gca-tip-born03-resized
gir-gca-tip-born04-resized

Technical specs

  • Cloud/server communication: Ethernet, Wi-Fi, cellular, or USB stick

  • Interface with dispensers (1 to 16): 2-channel pulse input,
    in-use signal digital input, auth. 5Amp-relay output

  • Interface with tank gauges: RS-232 or RS-485 (optional)

  • Backlit 2x20 LCD display

  • Alphanum. 42-key keyboard
    Vandal-resistant 12-key keypad (opt.)

  • Operating temperature: –20°C to +55°C (–4°F to +131°F)

  • Power supply: 120-240Vac 50-60Hz 1.5A
    DC version: 12-15 Vdc 1A

gir-gca-tip-born02

Communication options

On-prem SaaS
USB flash drive ✓ ✓
Ethernet (Cat 5) ✓ ✓
Wi-Fi ✓ ✓
Cellular ✓

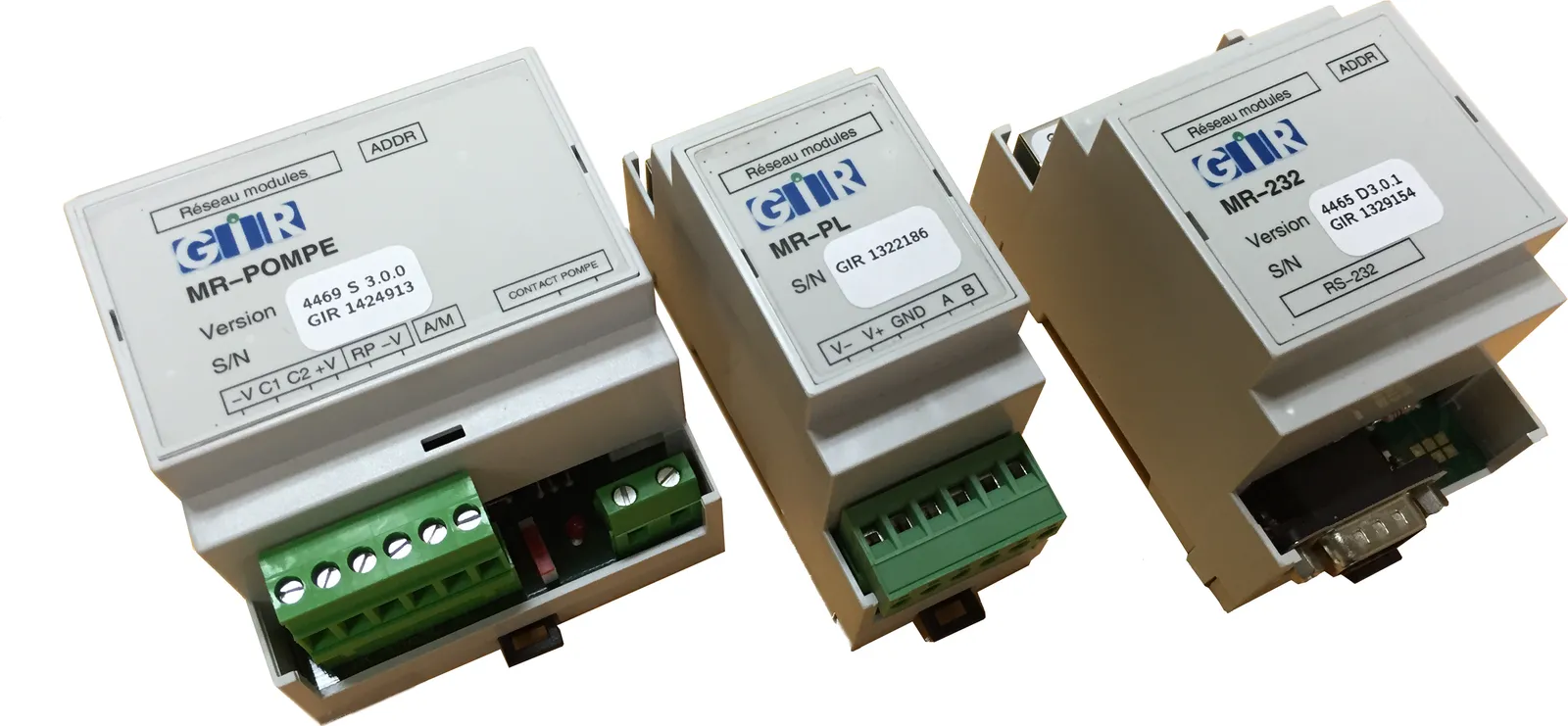

gir-gca-tip-modules

Dimensions / weight

  • Front-panel mounted terminal (frame)
    HxWxD: 190x270x42mm / 4 kg

  • “i-Box” housing (wall-mounted)
    HxWxD: 400x400x157mm / 12 kg

  • Stainless steel housing (pedestal)
    HxWxD: 1500x350x200mm / 32 kg

Advanced Features

  • Built-in setup and test mode for easy on-site troubleshooting

  • Satellite terminals for a cost-effective multiple fuel islands setup

  • Tank gauging interface (optional)

  • Receipt ticket printer (optional)

  • Gate access control (optional)

Main Features

  • Cloud-native device for SaaS deployment;
    Also on-premises capable

  • Real-time communication over cellular, Ethernet, or Wi-Fi; with offline capability

  • High memory capacity: up to 50k vehicles, 50k drivers, and 2500 transactions offline

  • 1 to 16 hoses with simultaneous fueling

  • Identification of driver and/or vehicle: code, RFID fob or card, magstripe cards, existing RFID cards, smartphone, etc.
